Step 1: Creating Your First Virtual Android Device
You can use an existing Corellium account, or you can request a new trial. After requesting a trial from Corellium, you should have received several emails providing you instructions on how to access the platform.
***IMPORTANT***
Your trial has a LIMITED number of "device hours" included. Keep in mind that when your device is powered on (or paused) the device hours timer is running. If you need to step away from your trial for any extended period of time (~20-30 minutes or more) you should POWER OFF the virtual Android to save your device hours.

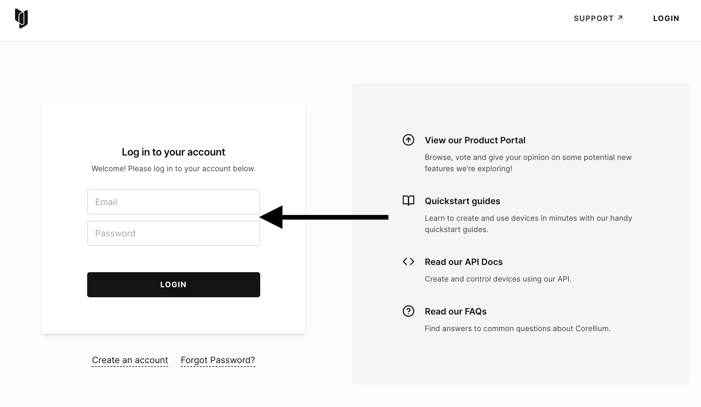

1) Begin by logging into the Corellium platform using the credentials you created during your trial setup.
2) After logging in click on the Create Device, if you are already a Corellium customer, feel free to skip down to the beginning testing section.
3) Corellium offers a single "generic" virtual Android device that will run Android 7 through Android 14. Click on Android to begin building a device. NOTE - Android Frames are simply "skins" for the generic Android virtual device. They are NOT vendor specific ROM images, they only change the "look" of the device on the screen.
4) Select the Generic Android device.
5) Select the Android version and type - "userdebug" are rooted images, "user" are non-rooted. For this trial guide, Android 13 (userdebug)
6) Confirm the choices and name the device (any name you wish) or accept the randomly created name and click Create Device.
6) The device will now be created in Corellium by sourcing the Android version and installing it onto the virtual device. This process will take 5-10 minutes. Feel free to watch the debug log as the device powers on and finishes its install.
7) You have now successfully created your first virtual device!
Taking your First Snapshot
Before you begin to make changes to your device (like installing software or tools), it is a good idea to create a snapshot of the virtual phone. This will allow you to restore back to a perfectly clean device at any time without rebuilding from scratch. Feel free to take snapshots throughout your trial use if you wish.
1) Click on the Snapshots tool in the tool bar.
2) To take a snapshot of an Android device, you must first power it off. Choose Turn Off from the VM controls.
3) Click Take New Snapshot. This process will only take a few seconds.
4) Give your snapshot a meaningful name. Click on the generic name (auto created) to edit.
5) Type the desired name and press enter/return - if you "click" outside the name, it will revert back to the auto generated name.
6) Turn on the device.
7) You've now successfully taken your first snapshot - you can come back here and restore the device to this state at any time. Wait for the device to finish booting before proceeding.
Step 3: Installing Corellium Café
Corellium includes a built-in side-loading tool that make installing mobile apps very easy. No developer mobile profiles or anything is required to use the side-loader.
1) After your device has finished building, isntalling and you've taken your first snapshot - you can begin using it just as you would a real device. You can lock/unlock the device, swipe actions are simulated by using the mouse to click and drag on the screen. Click and mouse up to get into the main Android screen.
2) Feel free to explore the device a bit. Click on the Home icon to get back to the dashboard. When you are ready to install Corellium Café, choose the Apps tool in the tool selector on the left.
3) To install Corellium Café (or other .apk file), choose the Install App button.
4) Choose the Corellium Café .apk file you downloaded above.
5) Corellium Café has been successfully installed on the device. You may now begin your pen testing!
6) You can verify Corellium Café is installed by swiping up from the bottom of the Android device.
7) Now might be a good time to Turn off the device and take another snapshot (if you wish) with the Corellium Café freshly installed, but has not been run yet - meaning its data container is completely clean.
If you would like to read more information about installing mobile apps visit the Apps section of our Support Center.
Step 4: Connecting to Your Virtual Android
As you perform app pen testing with Corellium, you may choose (or need) to use locally installed tools. Some of these tools use ADB or like Burp Suite require network connectivity.
If you are a Corellium customer and have one of our on-premises appliances, you can skip this section. This section only applies for customers or trial users who are utilizing the Corellium cloud solution.
Corellium offers the ability to connect to the virtual devices via network. Connecting to the VPN is required to allow the virtual Android device to communicate with your local computer.
Connecting to VPN
The VPN is an OpenVPN compliant connection. There are many OVPN clients you can use depending on your platform. For detailed steps to install/configure for MacOS, Windows and Linux visit our VPN topics on our Support Center.
This guide is going to walk through using TunnelBlick on MacOS. If you have a different OVPN client, you may have to view that documention for instructions on installing the .ovpn profile.
1) Click on the Connect tool in the tool bar on the left.
2) Download the OVPN file and install it into your OpenVPN (or compatible) local client.
3) Our Support Center has instructions on setting up the VPN for multiple types of clients as well as operating systems. Please follow those guides if you don't already have an OpenVPN client installed.
4) After you've installed your VPN client, connect to the VPN (TunnelBlick on MacOS is used in this example)
Test the VPN Connectivity
1) On the Connect tool page, scroll down to get the IP address of the virtual Android device.
2) Open a Terminal shell and ping the IP address of the Android device to verify network connectivity.
3) Network connectivity to the virtual Android device is confirmed!
Step 5: Running Corellium Café and Generating Data
Now that you've created your virtual device and have appropriate connectivity, it's time to begin actual testing and discovering of vulnerabilities.
Corellium Café has many vulnerabilities that you can discover.
Local Storage - there are several vulnerabilities in local storage, there may be hard coded credentials, or issues in storing of credit card data.
Network - any app that transmits data over the internet should not rely 100% on SSL/TLS to protect data. You might see some interesting data when you buy a drink.
App Misconfigurations - well behaving and secure apps should follow good hygiene when running on devices like obscuring information when backgrounding and in other places, like debug logs.
Device Integrity - apps should care whether your device has been compromised by being rooted. Detecting and bypassing these checks can lead to fruitful data leakage.
To begin finding many of these vulnerabilities, it's important to run the app and generate some data. Some vulnerabilities can only be discovered after data has been created or while sending.
Run Corellium Café
1) Run Corellium Café by clicking on the app.
2) For now, we simply bypass the credentials by logging in as a guest (HINT - you can look for some credentials during your testing) and go directly into ordering some beverages.
3) Choose a drink and Add it to your cart.

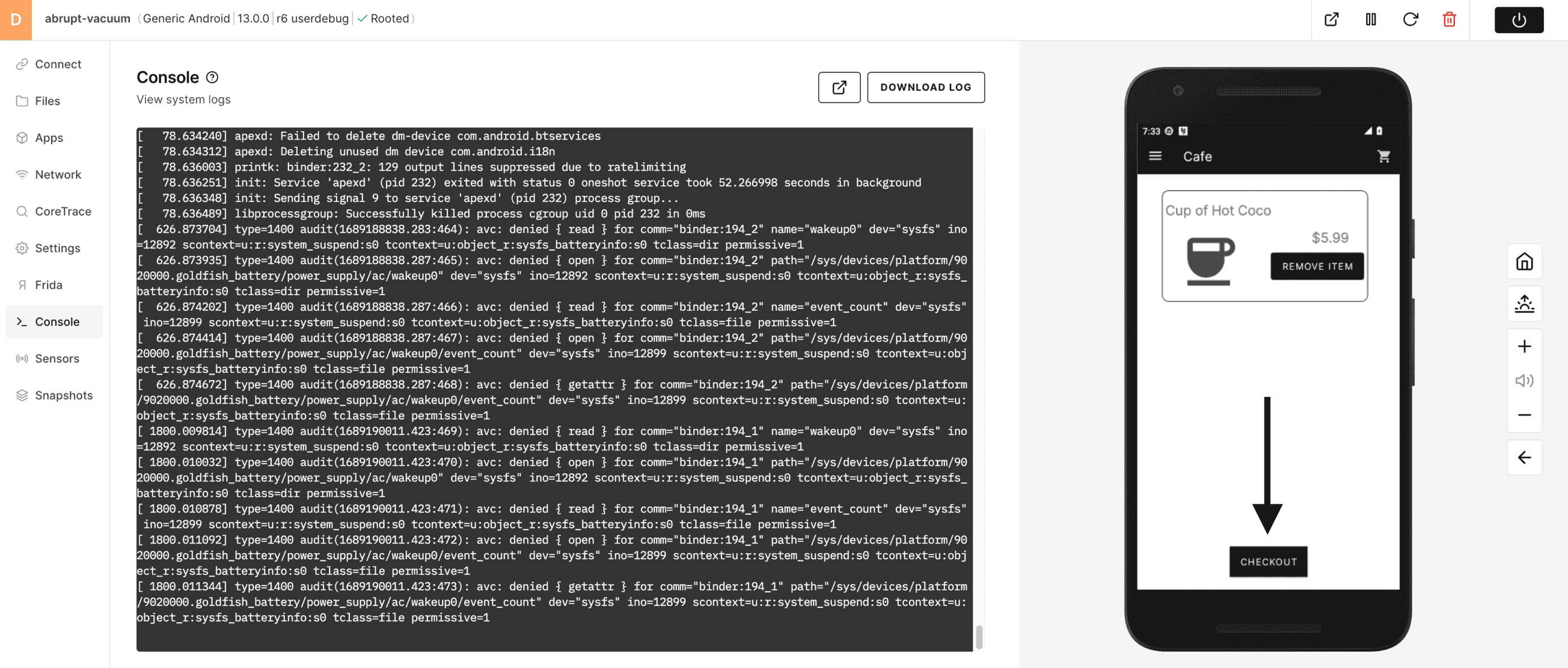

4) Begin your checkout procedure by selecting the cart.
5) Choose Checkout.
6) Enter some fake information, then Continue to Payment.
7) Enter your payment information - OBVIOUSLY do not use REAL payment information - this data is sent in a POST to corellium.com, however, there is no system to capture/store this (yet) on our website. Fingers crossed for future versions of Café. Choose Review Order.
8) Review your order - HINT there is a promo code that can be entered here - you might be able to find a code while pen testing... Submit your order.
9) Your order has been sent (HINT - there might be some interesting network traffic for later testing). Get ready to enjoy a tasty beverage - if only this actually worked!
8) You've now run through a complete ordering process to create data that has been stored on the device and transmitted over the air. Now you can really dig into the app to find how well the app handled that data.
Step 6: Get to Testing Already!
The goal of this scenario and the Corellium Café apps is to introduce you to conducting a mobile app pen test using a virtual Corellium device rather than a physical device. This guide does not "teach" you how to conduct a pen test but rather, helps you navigate the use of Corellium allowing you to use your skills and techniques to find the vulnerabilities in the Corellium Café app.
This guide is broken into several sections. There may be multiple vulnerabilities in each section for you to discover.
If at anytime you would like to jump to the answers - check out the Answer Key at the bottom of this page.
Section 1: Data at Rest - Local Storage Vulnerabilities
Mobile apps often create and store data locally. Sometimes this includes cached data, saved payment information or even hard coded credentials. During the above step, you definitely entered some data in this app to order your first beverage.
Use your skills and tools such as JADX to explore Corellium Café the app and the data it created.
Finding the Corellium Café Data Folder
1) Click on the Files tool in the tool bar.
2) Because you have a fully rooted Android OS, you are able to see every file on this device and you have full access to download and update files.
Use the Files tools to browse the filesystem to /data/data/com.corellium.cafe/ and you will see the Café data that has been created since running the app and ordering some coffee.
3) This data container folder will contain the data that was cached or saved in a mobile app. HINT - there is GOLD in this directory when looking for data at rest - local storage vulnerabilities.
Section 2: Data in Motion - Network Vulnerabilities
Normally we can trust that SSL/TLS and HTTPS websites/APIs are able to protect sensitive data from introspection. However, it is pretty darn easy for attackers to establish "man-in-the-middle" scenarios that will allow them break the SSL/TLS encryption and then gain access to the data traveling over the network. They could easily see this data in clear text. For any app, it is critical that developers protect this data further than relying solely on HTTPS connections.
To inspect data being transmitted/received to your virtual device, you can use the Network Monitor tool built into Corellium. Alternatively, you can redirect the traffic from the virtual device through a tool (like Burp Suite) running locally on your computer. See this Burp Suite guide to configure your virtual Android device to redirect its traffic through Burp.
Corellium's Network Monitor performs a built-in man-in-the-middle type of attack by stripping out all SSL/TLS encryption in the network communication. If an application does not obfuscate or encrypt its data separately (from HTTPS), you will be able to see the traffic in clear text.
Use Network Monitor to Capture Traffic
1) Select Network from the tool bar.
2) Click on Start Monitoring to begin network introspection on HTTP/HTTPS (port 80 and 443).
3) When your app sends/receives data (on port 80 or 443), it will be visible in the Network Monitor. You will be able to get Overview information as well as see the Request and Response data in clear text. (HINT - if you were to order another tasty beverage - you might see something valuable here).
4) When you are finished with Network testing, choose Stop Monitoring. You can also clear and/or download a complete log file of the network capture from this page.
Section 3: Application Misconfigurations
Mobile app developers, like all developers, are usually under pressure to deliver apps within short timeframes. While most developers have good intentions and are not malicious, sometimes short cuts or misconfigurations can accidently remain in production builds. In fact, misconfigurations or forgotten hard coded data (like passwords) are extremly common and can lead to massive data breaches.
Misconfigurations can be found in app configuration profile files and can be found by unzipping the .apk file locally and exploring the many configuration files. Other configuration data or even hard coded credentials can be leaked through cached screenshots or debug logs.
Use Corellium's File browser to look at the data that is saved and contained within the app's data container directories and you can use ADB or ADB Activity Monitor to explore debug logs.
Section 4. Runtime Manipulation
Well designed mobile apps should attempt to verify the integrity of the mobile device before allowing access to sensitive portions of the app. This device "checks" can easily bypassed by using runtime manipulation (hooking) to feed false information to the application or change information at run time.
Corellium includes one of the most popular tools, Frida to perform these actions. There are some example Frida scripts that are included - to get a feel for how Frida works.
1) Choose Frida from the tool bar.
2) Some example Frida scripts are built into Corellium to get a feel for how this process works. Select Scripts to view the examples.
3) This example script is for hooking Android WebView and replacing a string while the app is running.
4) To view the script (or to edit) click on the "three dots" and choose Edit.
This script is designed to hook WebView and replace the string "google.com" with the string "duckduckgo.com" when entered into the app. When you are done reviewing the script, click Close.
5) To run this example script, launch WebView on the device.
6) Click on Console.
7) Choose Select a Process.
8) Search for and choose webview.
9) Choose Attach to begin hooking WebView with Frida.
10) Frida should now be running and hooked into WebView (PID) - click on Scripts to choose the example Frida script.
11) Choose Execute on the hook_java.js script.
12) Click on Console to go back to the Frida console.
13) Click inside the Frida Console and verify that you do want to load the new script - answer 'y'
13) Enter 'google.com' into the WebView URL field.
14) You will notice that when the string "google.com" is entered, WebView instead goes to DuckDuckGo instead of the original google.com.
15) You can use Frida to bypass all kinds of runtime checks that mobile apps do. This can be very handy when trying to test or access secure parts of mobile apps.
